WT-PCI303 Catalog

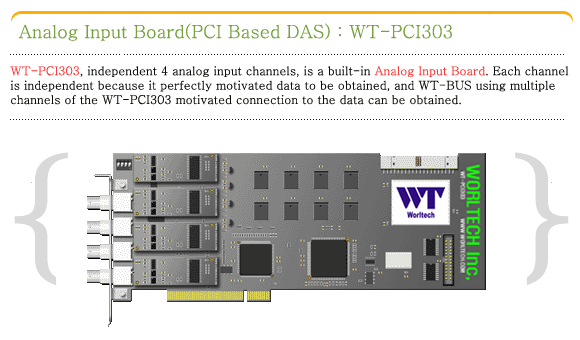

WT-PCI 303 32Bits PCI BUS the Windows Plug and Play support structure designed by the user and easy to wear, all of the state board, especially with a program designed to control. Additionally, in Windows 98/2000/XP designed to achieve better performance.



Analog input channels at sampling rates up to 12 Bits Resolution per channel for each 5MHz, and each channel of the input voltage range (Voltage Range), ± 1V, ± 2V, ± 5V, ± 10V and the user can set.




 ㆍ Bus : IBM PC Bus (32bits PCI Interface)
 ㆍ Size : 266 * 114 mm

 I/O Signals
 ㆍ Analog Input : Single-Ended 4 Channels or Differential 4 Channels
 ㆍ Digital I/O : 8 Channels

 A/D Conversion
 ㆍ Complete 12 bit A/D Conversion
 ㆍ Type of ADC : Successive Approximation
 ㆍ A/D Channel : Single-Ended 4 Channels or Differential 4 Channels
 ㆍ Input Voltage Range : ±10V, ±5V, ±2V, ±1V
 ㆍ Resolution : 12 bit 1 in 4096
 ㆍ Maximum Sampling Rate : 20 MHz for each channel
 ㆍ Streaming to Disk Rate : 3 MHz (Tested on Pentium III 700)
 ㆍ Input Impedance : 10 MΩ
 ㆍ A/D Trigger Mode : Programmable Timer, Software, External Trigger
 ㆍ A/D Trigger Event : Analog Input, Digital Input, WT-BUS
 ㆍ Data Transfer : Programmed I/O, Interrupt, DMA

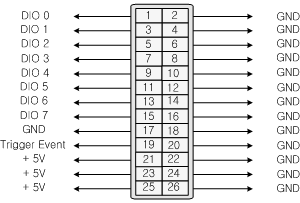

 Digital Input
 ㆍ D/I Channel : max 8 Channels
 ㆍ TTL Compatible Input
 ㆍ Low Voltage Level : 0 ~ 0.8V
 ㆍ High Voltage Level : 2V ~ 5V
 ㆍ Input Load : Low 0.5V(0.2mA), High 2.7V(20mA)
 ㆍ Data Transfer : Programmed I/O

 Digital Output
 ㆍ D/O Channel : max 8 Channels
 ㆍ TTL Compatible Output
 ㆍ Low Voltage Level : 0 ~ 0.4V
 ㆍ High Voltage Level : 2.4V ~ 5V
 ㆍ Input Load : Low 0.5V(0.2mA), High 2.7V(20mA)
 ㆍ Data Transfer : Programmed I/O

 Supported S/W
 ㆍ Platform : Windows 98, Windows ME, Windows 2000, Windows XP
 ㆍ WT-XMaster Utility Software
 ㆍ Library : C/C++, C#, Visual Basic, Labview, Delphi
 ㆍ Plenty of example codes



 ㆍ WT-LXT2 set




 ㆍ CB-SPN-LA : BNC-악어클립 Cable




 ㆍ CB-SPN-LB : BNC-BNC Cable
