Model

Frequency

Connector Type

Contact Diameter

 Range in
Steel		 Temperature Range

Designation

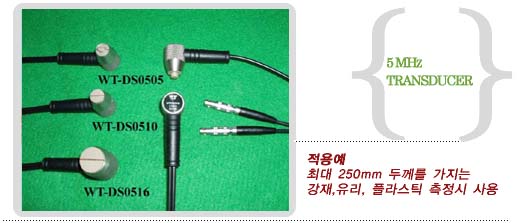

WT-DS0505
WT-DT0505

5MHz Right Angle
Straight		 0.197 in
(5.0 mm)		 0.039 to 5 in
(1.0 to 120 mm)		 14 to 122 °F
(-10 to 50 °C)		 Small Diameter Piping

WT-DS0510
WT-DT0510

5MHz Right Angle
Straight		 0.394 in
(10.0 mm)		 0.039 to 8 in
(1.0 to 200 mm)		 14 to 122 °F
(-10 to 50 °C)		 Corrosion and Erosion

WT-DS0516

5MHz Right Angle 0.630 in
(16.0 mm)		 0.039 to 10 in
(1.0 to 250 mm)		 14 to 122 °F
(-10 to 50 °C)		 Corrosion and Erosion





Model

Frequency

Connector Type

Contact Diameter

 Range in
Steel		 Temperature Range

Designation

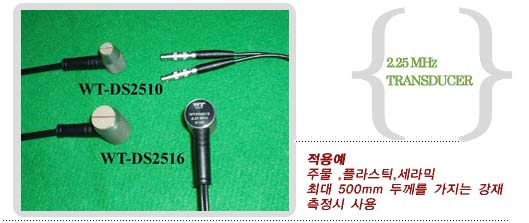

WT-DS2510
WT-DT2510

 2.25MHz Right Angle
Straight		 0.394 in
(10.0 mm)		 0.059 to 12 in
(1.5 to 300 mm)		 14 to 122 °F
(-10 to 50 °C)		 Casting and Forging

WT-DS2516
WT-DT2516

 2.25MHz Right Angle
Straight		 0.630 in
(16.0 mm)		 0.059 to 20 in
(1.5 to 500 mm)		 14 to 122 °F
(-10 to 50 °C)		 Casting and Forging





Model

Frequency

Connector Type

Contact Diameter

 Range in
Steel		 Temperature Range

Designation

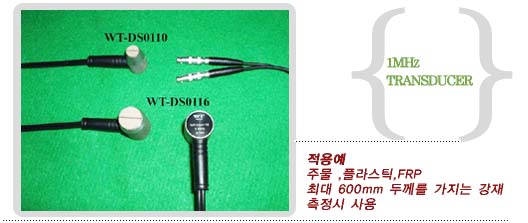

WT-DS0110
WT-DT0110

1MHz Right Angle
Straight		 0.394 in
(10.0 mm) 		0.078 to 16 in
(2 to 400 mm) 		14 to 122 °F
(-10 to 50 °C) 		Casting and Forging

WT-DS0116
WT-DT0116

 1MHz Right Angle
Straight 		0.630 in
(16.0 mm) 		0.078 to 24 in
(2 to 600 mm) 		14 to 122 °F
(-10 to 50 °C) 		Casting and Forging

WT-DT0120F

 1MHz Straight 0.78 in
(20.0 mm) 		Range in
FRP
(3 to 25 mm) 		14 to 122 °F
(-10 to 50 °C) 		FRP






Model

Frequency

Connector Type

Contact Diameter

 Range in
Steel		 Temperature Range

Designation

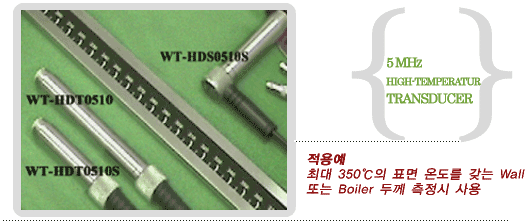

WT-HDS0510 WT-HDT0510

 5MHz Right Angle
Straight		 0.394 in
(10.0 mm)		 0.039 to 4 in
(1.0 to 100 mm)		 32 to 662 °F
(0 to 350 °C)		 High- temperature Wall and Boiler

WT-HDS0510S WT-HDT0510S

 5MHz Right Angle
Straight		 0.394 in
(10.0 mm)		 0.039 to 4 in
(1.0 to 100 mm)		 32 to 662 °F
(0 to 350 °C)		 High- temperature Wall and Boiler





Model

Frequency

Connector Type

Contact Diameter

 Range in Steel Temperature Range

Designation

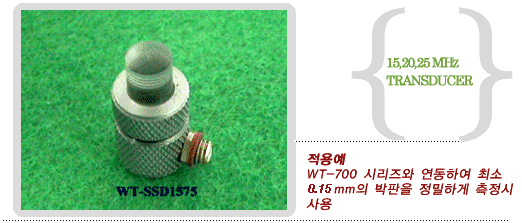

WT-SSD1575

 15MHz Right Angle 0.295 in
(7.5 mm)		 0.0059 to 0.86 in
(0.15 to 22 mm)		 14 to 122 °F
(-10 to 50 °C)		 Thin Materials

WT-SSD2075

20MHz Right Angle 0.295 in
(7.5 mm)		 0.0047 to 0.78 in
(0.12 to 20 mm)		 14 to 122 °F
(-10 to 50 °C)		 Thin materials

WT-SSD2045

 20MHz Right Angle 0.17 in
(4.5 mm)		 0.0047 to 0.78 in
(0.12 to 20 mm)		 14 to 122 °F
(-10 to 50 °C)		 Thin materials

WT-SSD2575

 25MHz Right Angle 0.295 in
(7.5 mm)		 0.0047 to 0.78 in
(0.12 to 20 mm)		 14 to 122 °F
(-10 to 50 °C)		 Thin Materials
